SK-TRS TYPE A

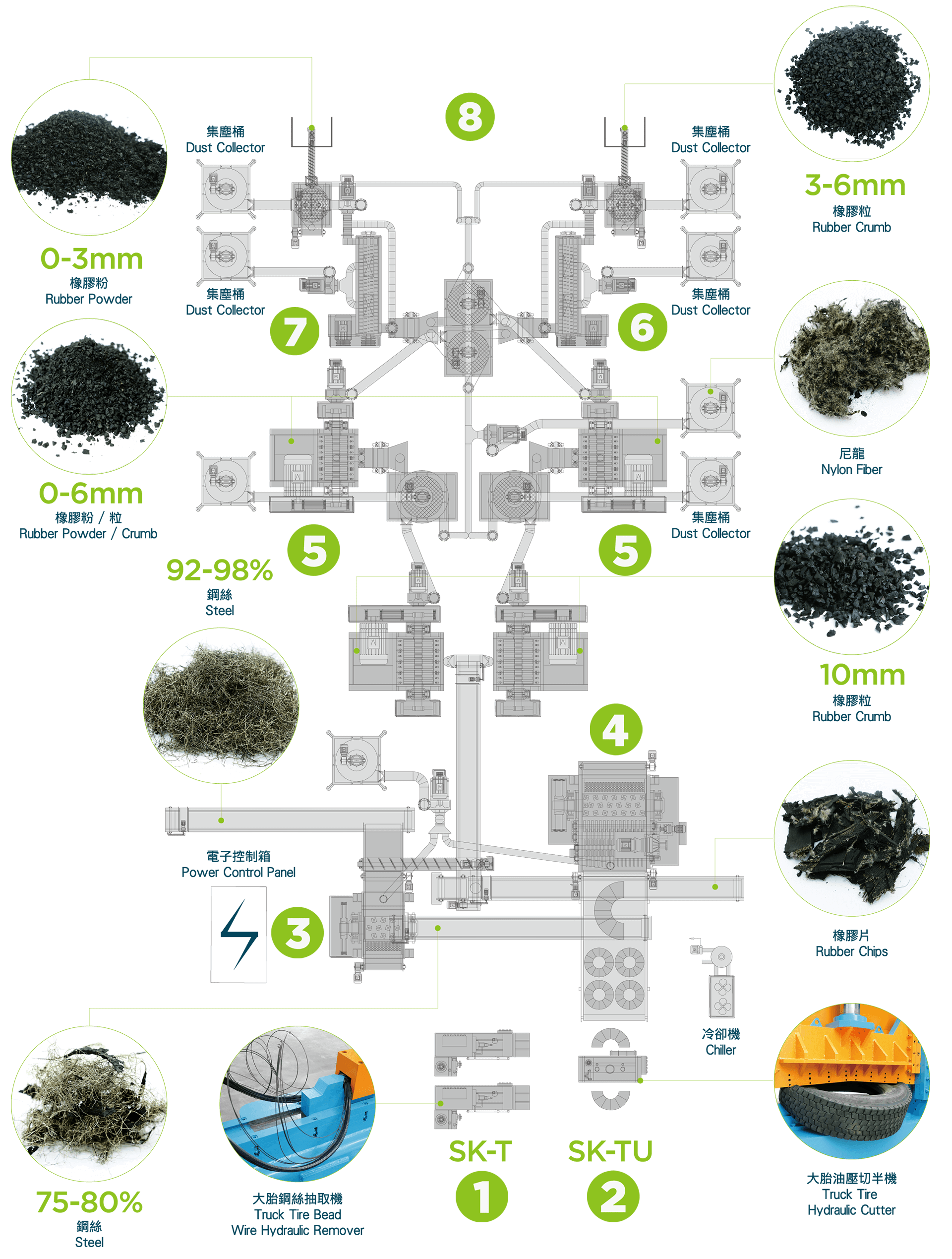

Layout of Recycling Process
Model:SK-TRS TYPE A

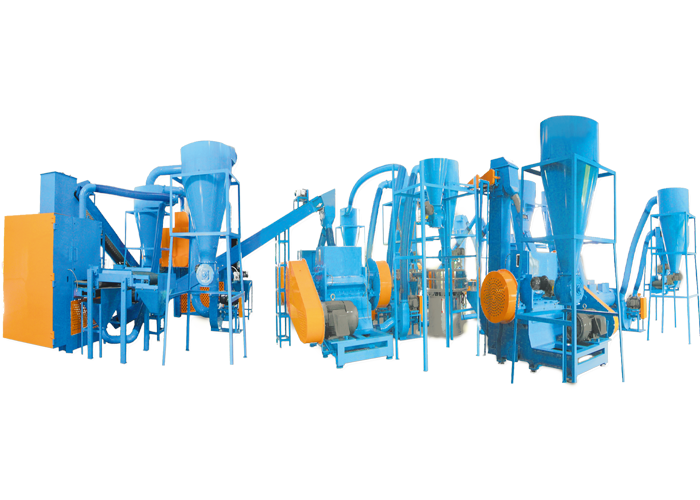

The worldwide unique masterly Scrap Tire Processing System
- The unique design of hi-tech & eletronic auto-feeding system to ensure efficient, stable and safe operation.

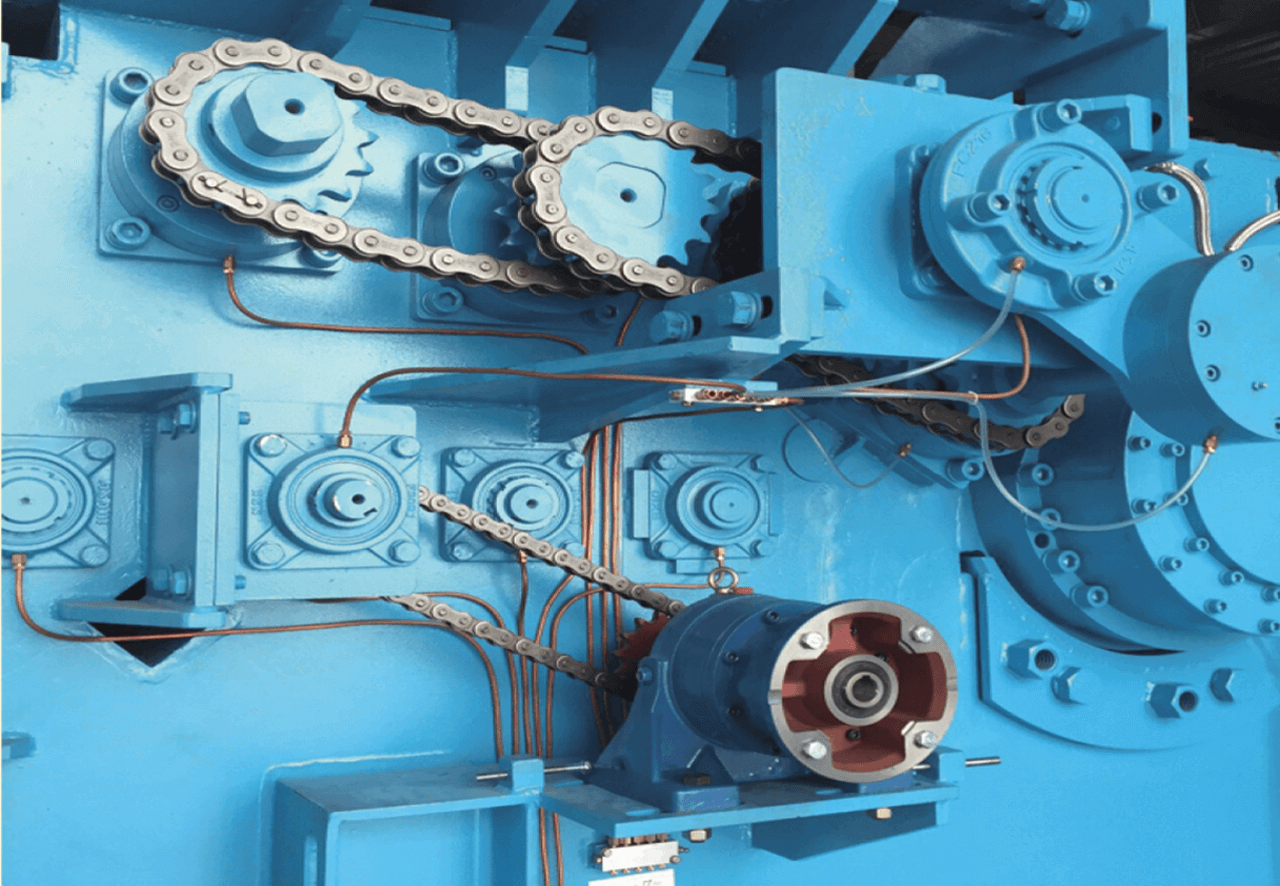

- Hi-tech main bearing designed with cooling system to ensure 24 hrs nonstop operation under normal temperature.
Operation Process
1

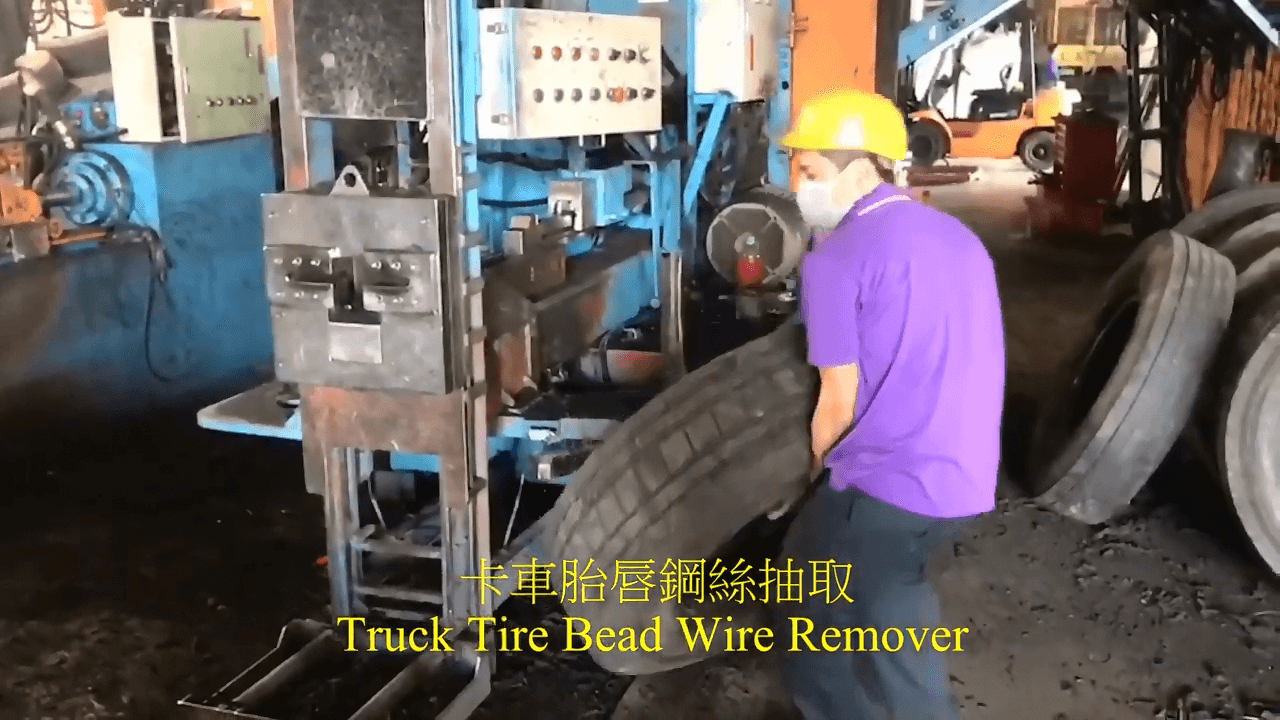

First: Truck Tire Bead Wire Remover
12132113212313
2

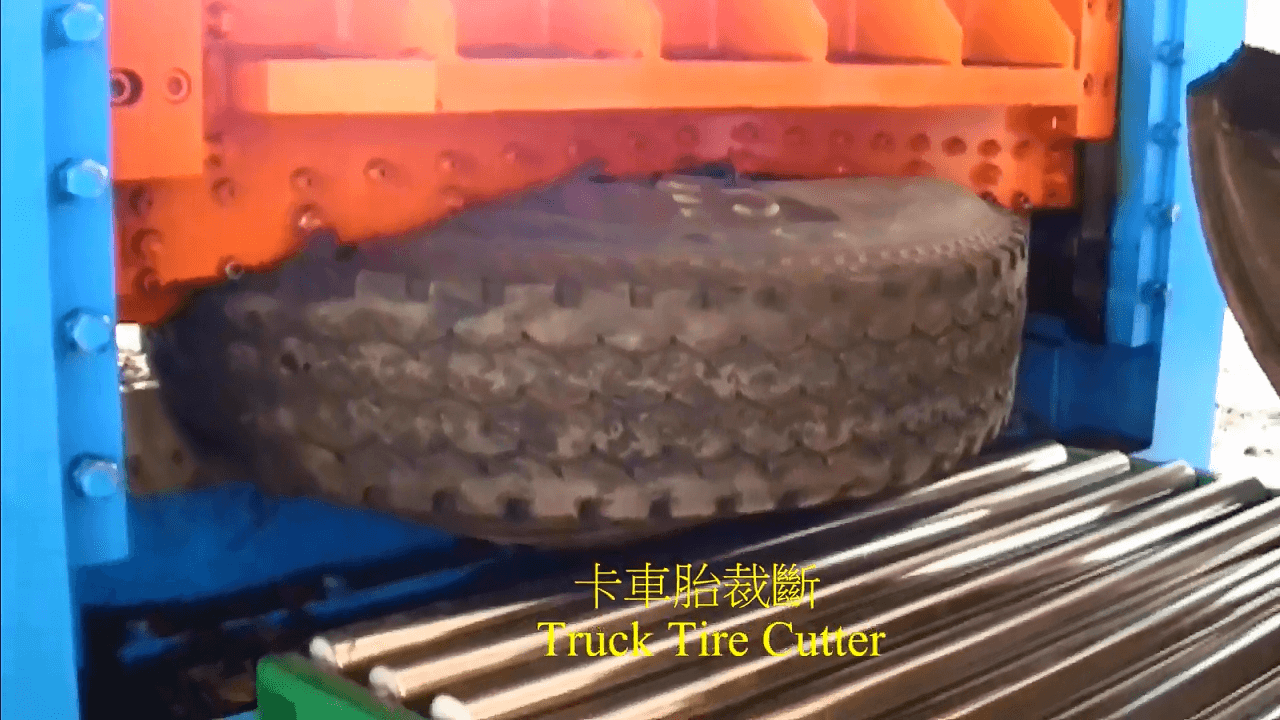

Second: Truck Tire Hydraulic Cutter
safda
3

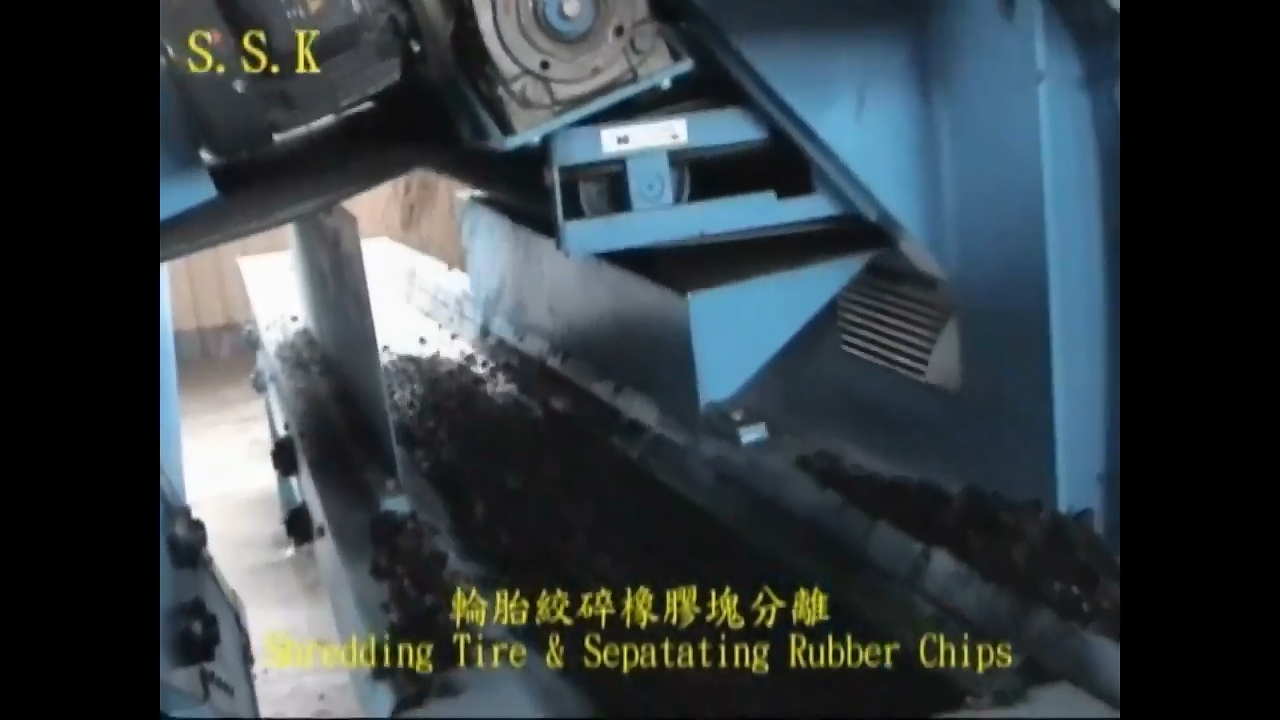

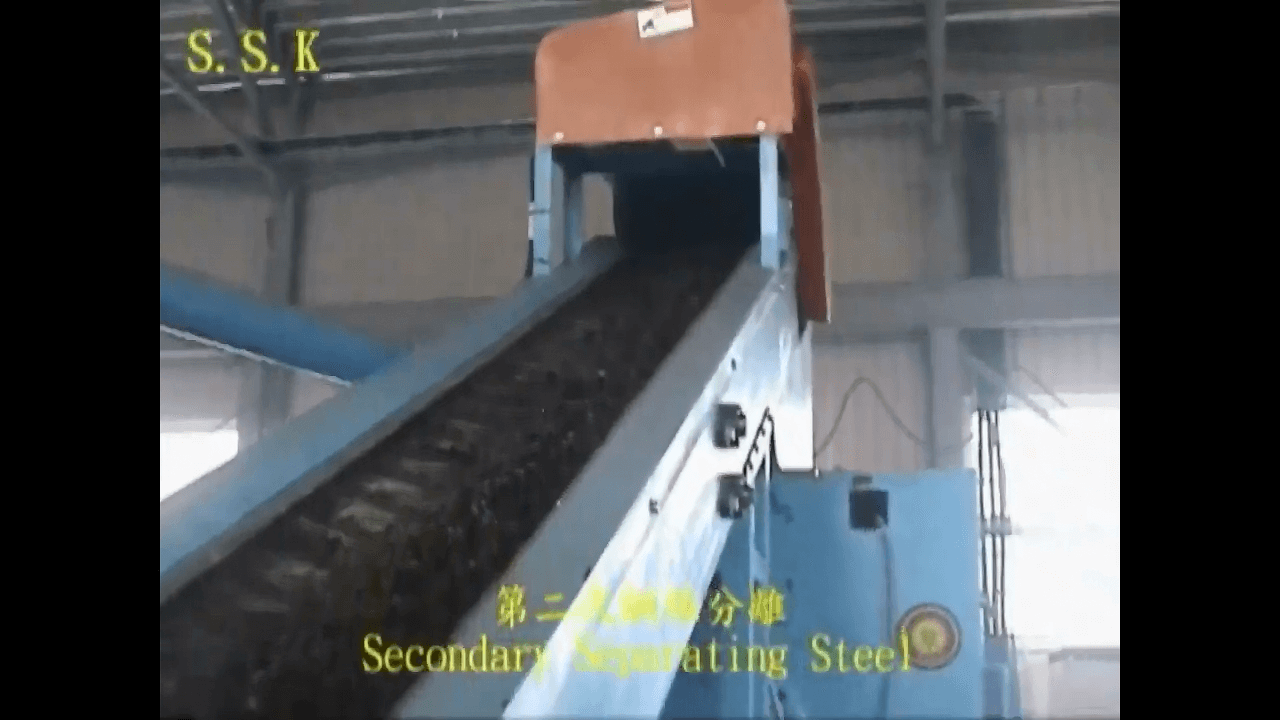

Third: Shredding Tire & Separating Steel
4
Forth: Primarily shredding Rubber chips to be below 10mm
121321
5
Fifth: Secondarily Crushing 10mm Crumb Rubber to be Below 6mm Crumb Rubber
6

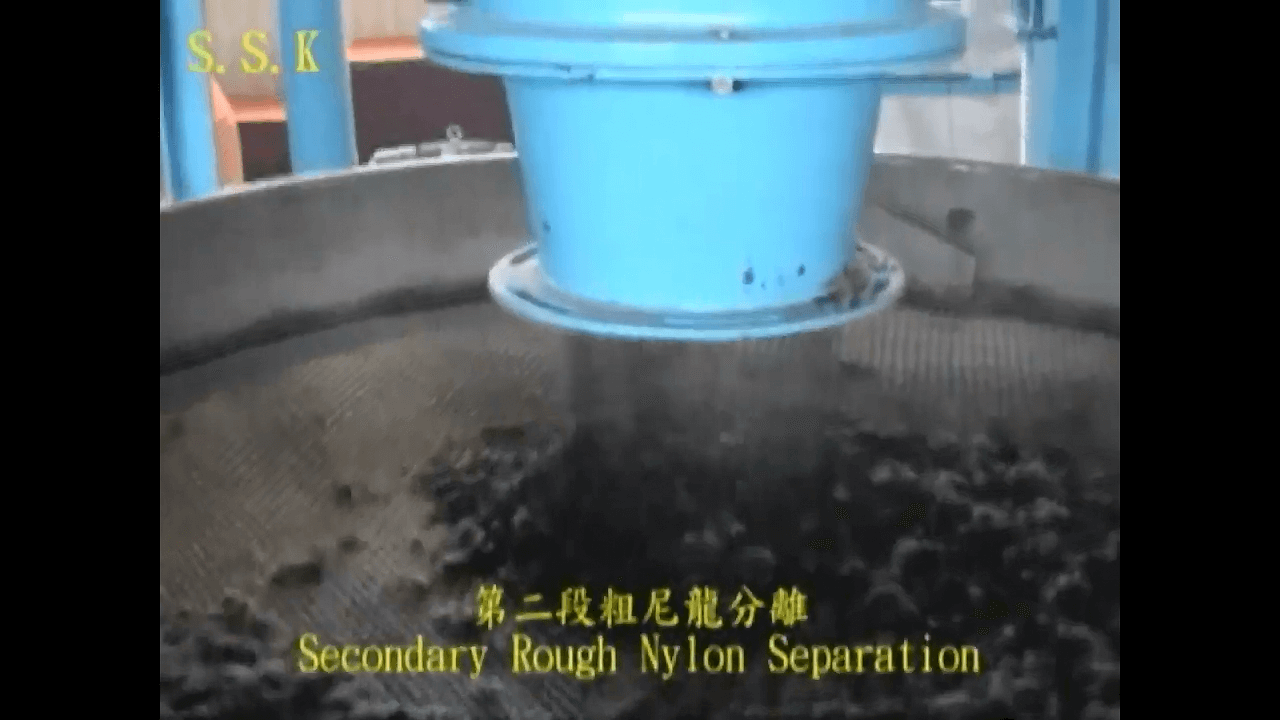

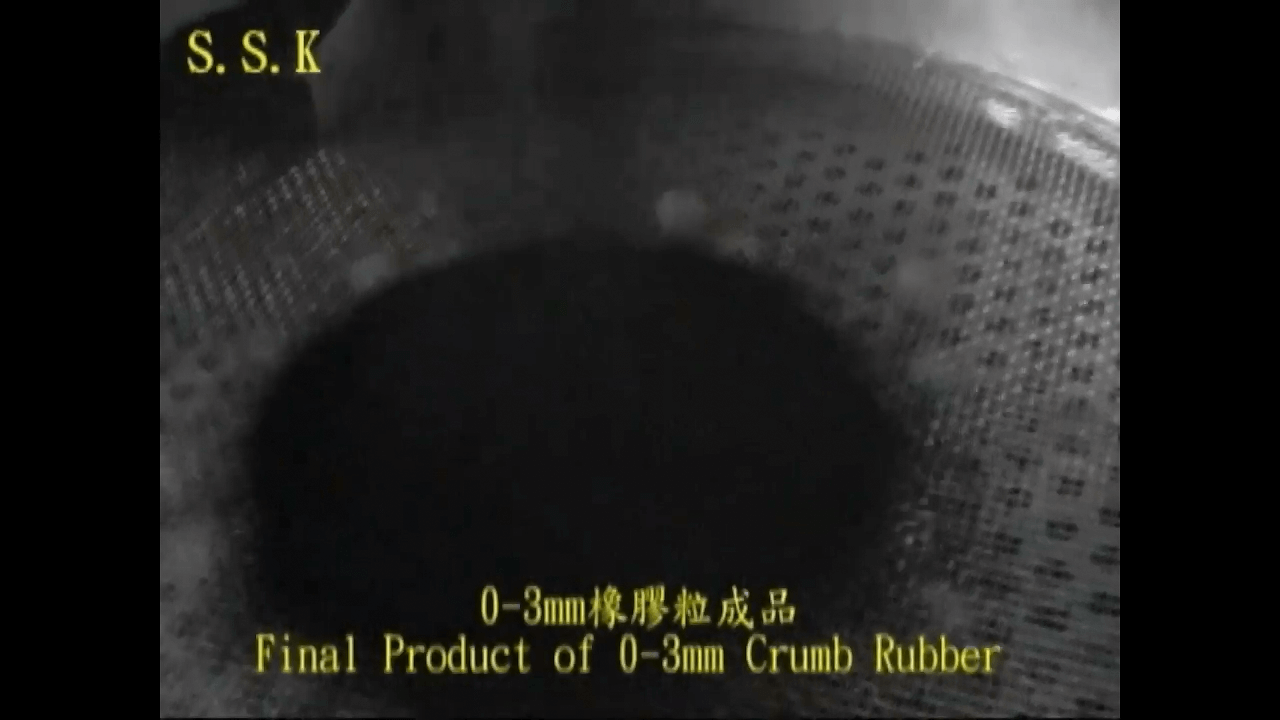

Sixth: Separating Fine Nylon from 0-3mm Crumb Rubber
7

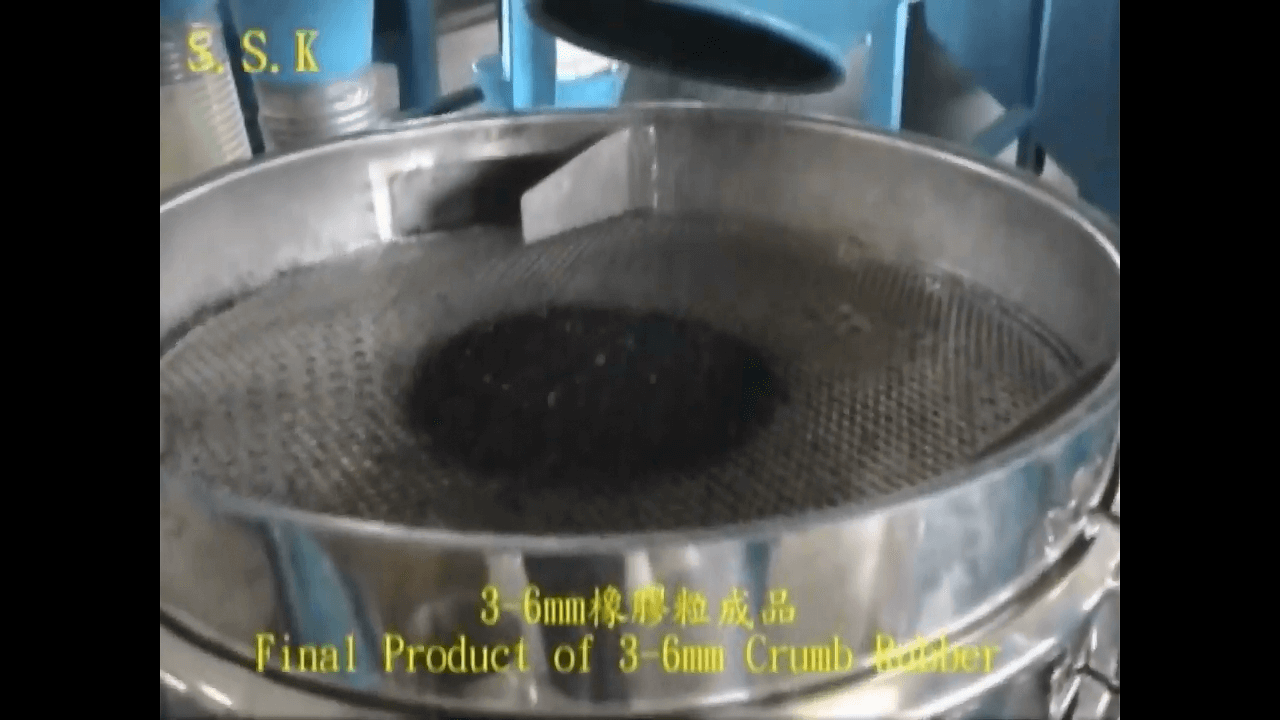

Seventh: Separating Fine Nylon from 3-6mm Crumb Rubber
8

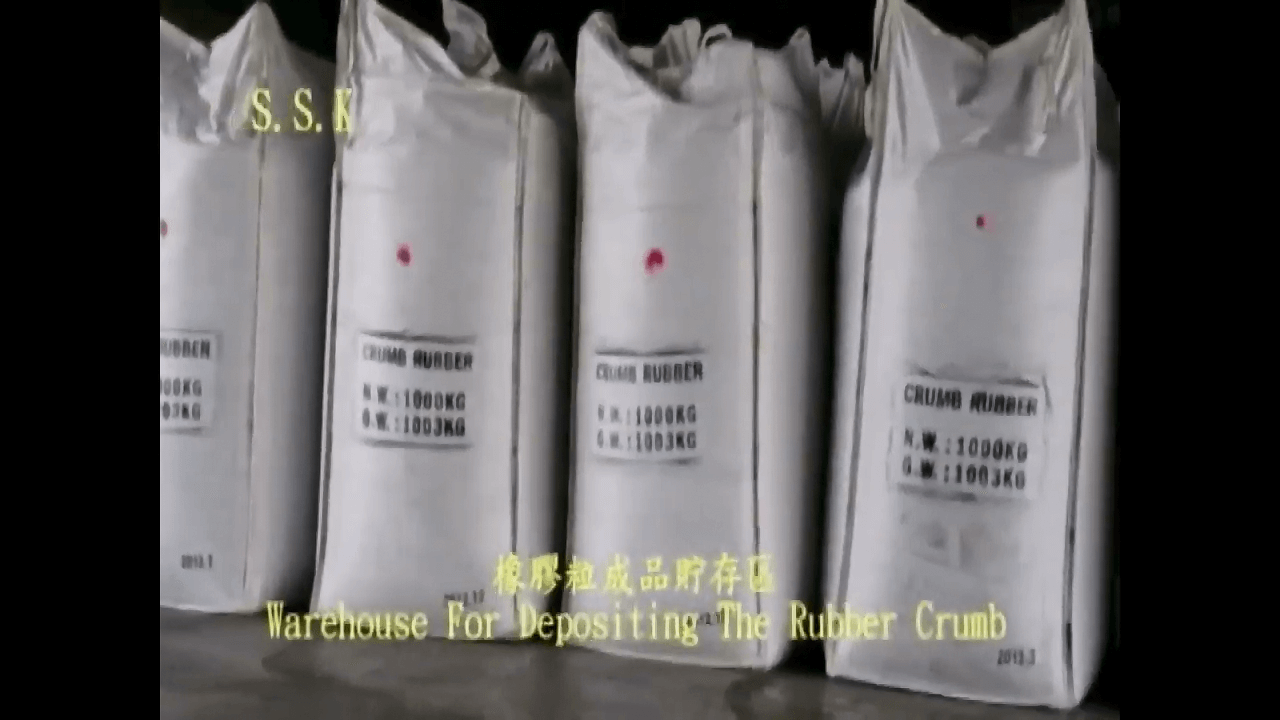

Eighth: Crumb Rubber Packing
Specification
| Model | Specifiaction | Production Capacity | Remarks |
|---|---|---|---|
| SK-TRS 1200 | Below 1,200mm o x 385mm H Hollow Tires. | 1,600Kg~2,000Kg/hr | Depending on tire brand and type |
| SK-TRS 800 | Below 1,200mm o x 385mm H Hollow Tires. | 800Kg~1,000Kg/hr | Depending on tire brand and type |
Independent Accessory
Catalog & Video
| Tire Recycling System | Download |
|---|
